JKF CD FILTERING SYSTEM en Lahti, Finlandia
Usado
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- usado
- Subcategoría
- Piping parts
- Subcategoría 2
- Locking feeders
- Subcategoría 3
- Filters and cyclones
- Subcategoría 4
- Fans and vacuum cleaners
- Subcategoría 5
- Bite removal and spark detection
- Subcategoría 6
- Spark detection and extinguishing systems
- ID de Anuncio
- 100476227
Descripción

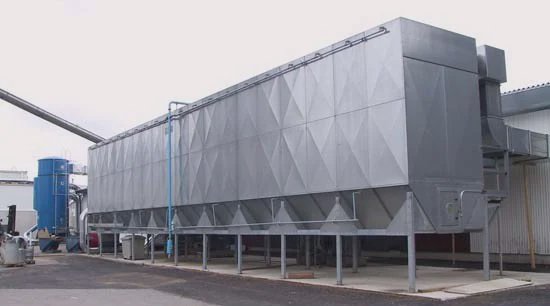

JKF CD is a filter with a hopper conveyor for large air and crushing volumes.
Almost 100% return of warm air to the factory. The filtered material is transferred by a hopper conveyor to a tray feeder at the base of the filter, from where it is dropped into the transfer line. Automatic cleaning function, also during operation.
JKF filter with a hopper conveyor, model CD, in which the filtered material is transported by a hopper conveyor to a tray feeder at the base of the filter, from where it is transferred into the transfer line. Modular filter, which is built up of 5 ��� 20 modules, with a width of 1235/ 2400 mm. Air intake from the side of the filter through a separate inlet block. Filter cleaning with counter-pressure fans. Material galvanized steel. Large maintenance doors on the side and top of the filter. Filtration area 200-1160 m2. The filtration material is selected according to the air to be filtered.
