MG Mobile Gantry en Pekín, China
Usado
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- usado
- Model
- 80T Mobile Gantry MG, SB, MST
- Lifting capacity(t)
- 20ton, 30ton, 40ton, 50ton, 60ton, 70ton, 80ton, 100ton, 120ton, 150ton, 200ton, 220ton, 230ton, 250ton, 300ton, 320ton, 330ton, 350ton, 360ton, 400ton, 450ton, 500ton, 550ton, 600ton MG Mobile Gantry Straddle Carrier
- Span (m)
- 5m~40m
- Lifting height (m)
- 5m~18m
- Max travel speed (m/min)
- Full Load-20/90, Without Load-40/130, 30kph, 4mph
- Crane turning degree
- Straight travel, oblique travel, 90° in-situ steering
- Gradeability
- 5% fully loaded
- Diesel engine power
- 96HP
- Electrics
- 12 Volts
- Tyres
- 4 x Super Elastic Puncture Proof Tyres
- Standard color
- Yellow, Gray, Red, Blue
- Certification
- CE ISO UL SGS
- Control
- Driver Cabin Control / Wireless Remote Control
- Power supply
- AC, Electric, Diesel Engine, Electric-diesel Engine, Hybrid power
- Steering mode
- Multi-directional, Front wheel steer, Rear wheel steer, Four wheel steer, Crab steer, 90° steer, Carousel steer.
- Features
- Multi-functional. Lighter operating weight. Driver Cabin. 3 Wheel Hydrostatic Drive. Load Sensing Steering. 4 Way Lever Positioning of Wheels. Hydraulic Oil Cooler. Telescopic Lift. Independent and electronically synchronized winches.
- Safety device
- Buffer, Wheel bumper stops, Sensors, Power failure protection, Automatic rectify deviation control, Weight overload protection device, Limit switch, Emergency stop system, Lighting system, Audio and video alarm system.
- Application area
- Prefab concrete block, Aluminum coils handling, Wind power handling, Machinery manufacturing workshop or outdoor storages, Quay container transport, Handling modular construction components.
- 50 ton mg mobile gantry cost price
- $100,000~$300,000
- Categoría
- Grupos electrógenos en China
- Subcategoría
- Straddle carrier
- ID de Anuncio
- 104148272
Descripción

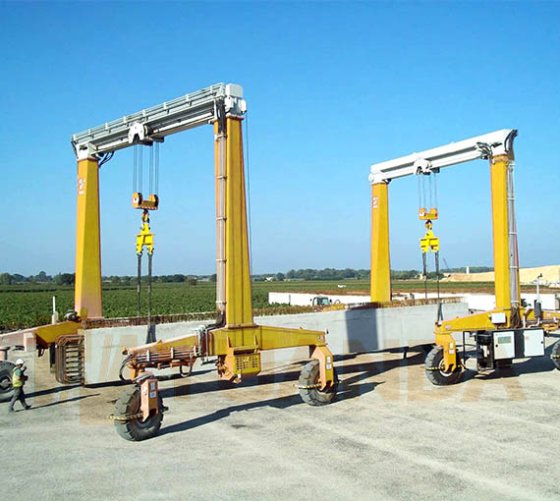

60 Ton MG Mobile Gantry are intended for use on construction sites and prefabrication yards for the movement of heavy precast moduler or prefabricated items
Lifting capacity: 25 30 35 40 50 60 80 100 120Ton(tonne)
Models: Sprinter Carriers, MG Mobile Gantry
Travel speed: 50~130m/min(Empty load/Full load)
Hoisting capacity under spreader: 50T 60T 70T 80T 100T
Wheel quantity: 3 wheels, 4 wheels, 6 wheels, 8 wheels
Power supply: Diesel generator / Electric / Lithium battery / Lithium iron phosphate battery(LFP)
Control method: Wireless radio remote control, driver cab control
MG Mobile Gantry manufacturer type: China supplier
MG Mobile Gantry price: $90,000~$150,000
