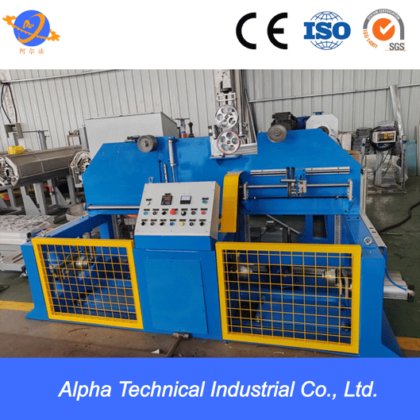

Intelligent Rewinding Machine with Fault Detection and Tracing Capabilities en Wuxi, Jiangsu, China
Nuevo
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- nuevo
- Line speed
- 10–300 m/min
- Applicable cable diameter
- ∮0.85mm – ψ5mm
- Pay-off reel size
- 400-800 Customization Available
- Take-up reel size
- 400-800 Customization Available
- Working direction
- Take-up/Pay-off direction: left/right interchangeable
- Power supply
- 3ψ×380V×50Hz
- Mechanical design line speed
- 300M/min Max.
- Space requirement
- Approx. 5 m (L) × 2 m (W) × 2 m (H) Customization Available
- Power consumption
- 12 kW per set
- Categoría
- Extrusoras en China
- Subcategoría
- Take-up & pay-off series
- Subcategoría 2
- Extrusion production line
- ID de Anuncio
- 107790379
Descripción
Key Configurations
1. Working Direction: Take-up/Pay-off direction: left/right interchangeable
2. Efficiency Imporvment: Automatic stop when any cable issue detected in line, no need to stop other machines when cable producing
3. Space Saving: From meter counter to Fiber test and to Rewinding, 3 process are gathered up in 1 machine. And we can design the size for clinet who didn`t need 800 bobbing, which will save more space.
Applications
This equipment is mainly used for cable rewinding between left and right shafts, transferring from large reels to small reels, and cable defect detection.
Automatic stop upon cable breakdown or irregularities (bulges/indentations), followed by automatic rewind to locate the defective position
Then rollback all the cable to the issue place with red alarm. To help labour find out it issue and mark it out.
Technical Specifications
(Custom configurations available upon request.)
