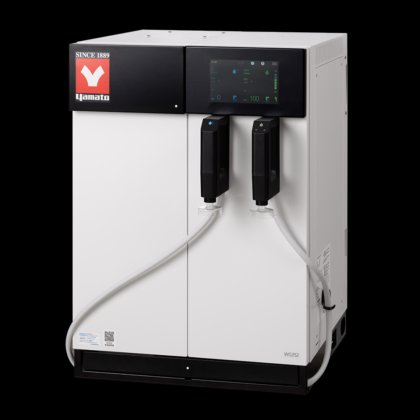

Yamato WG252 en Tokio, Japón
Nuevo
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- nuevo
- Número de stock
- 253165
- Water purifying method
- Ion exchange → distillation → filtration
- Sampled pure water method
- Ion-exchanged water / distilled water
- Distilled water production
- About 1.5L / h
- Amount of distilled water collected
- ~ Approximately 2.5 L / min (with variable flow rate function) * 2
- Ion-exchanged water sampling amount
- Approximately 1.0 L / min (without variable flow rate function) * 2
- Collection capacity setting range
- 0.01 ~ Tank water storage L / Continuous water sampling * 3
- Condenser
- Hard glass
- Heater
- Ceramic heater 1.2kW
- Pretreatment cartridge
- 0.1 μm hollow fiber membrane + activated carbon (PWF-1)
- Ion exchange resin cartridge
- 1 CPC-S 4L type (cartridge with activated carbon)
- Distilled water / ionized water final filtration
- 0.1μｍ×2
- Leak detection
- Forced shutoff of water supply solenoid valve by leak detection sensor at the time of leak
- Distilled water storage tank
- 30L polyethylene tank
- Distilled water uv sterilization
- Optional
- Water sampling sink
- Push-open type, load capacity: 10 kg, 5 L for beakers with hands
- Multipurpose distilled water sampling port
- For Φ8 hard tube connection (right side of the main body)
- Standard raw water pressure range
- 0.05～0.5 MPa
- Standard raw water requirement
- Approx. 2.0 L/min
- Standard ambient temperature range
- 5～35 ℃
- Function distilled water tank water level display
- 1L unit
- Distilled water tank full water setting
- 2，10，20，30L

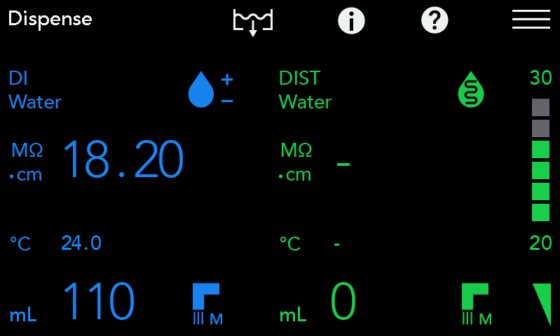

- Display / setting water quality display
- Conductivity / resistivity (switching)
- Display / settings other displays
- Notification: Consumables replacement / Periodic maintenance, Alarm: Water outage / Trend data recording impossible / Power failure / Distilled water quality deterioration, Abnormal: Controller / Water leakage / Heater overheating / disconnection / Tank water level gauge / Boiler water level, Water level gauge / Boiler drainage route / Cooling water / Water quality meter / Water sampling pump, / Ion exchanged water flow rate decrease / Water sampling route
- External dimensions（w×d×h mm）
- 540×570×775mm
- Power source
- AC220V Single phase with step-down transformer
- Weight
- 63kg
- Subcategoría
- Lab equpment
- Subcategoría 2
- Water purifier
- Subcategoría 3
- Water purifier (auto still series)
- ID de Anuncio
- 57903058
Descripción
Convenient and large capacity type compliant with water quality A4
Features of Water Purifier (Ion-exchange + Distillation) (WG252)
Two independent dispensers for water sampling according to various scenes

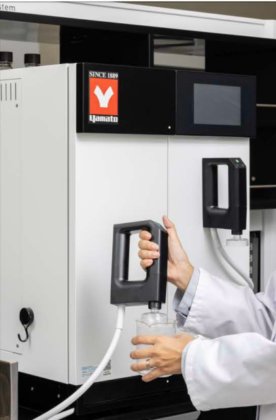

Handy type dispenser method
Able to easily collect water by holding the controller in your hand.
The dispenser is divided into two parts, ion-exchanged water (A4 water level) and distilled water (A4 water level), so it can be used according to various scenes.

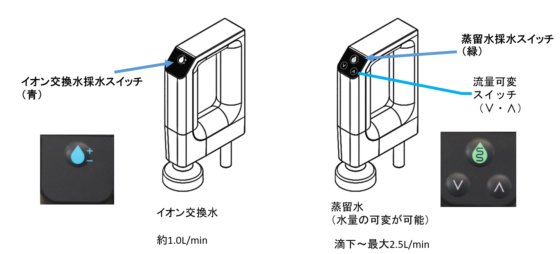

Easy-to-operate dispenser
Separate dispensers for ion-exchanged water and distilled water are available.
A water sampling switch can be easily controlled and sampled by the controller.
(The amount of distilled water can be changed easily .)

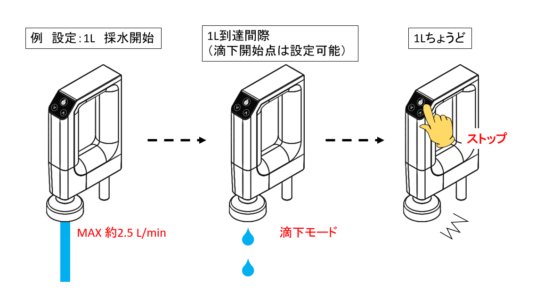

"Patent pending for dripping control" for marking line alignment in semi-automatic water sampling mode
In water sampling mode, fixed-quantity water sampling (automatic stop at a fixed amount).
