Especificaciones
- Condición
- nuevo
- Número de stock
- Keithley 2430
- Categoría
- Frecuencímetros en Taiwán
- Subcategoría
- 電表/計頻器
- ID de Anuncio
- 62114441
Descripción

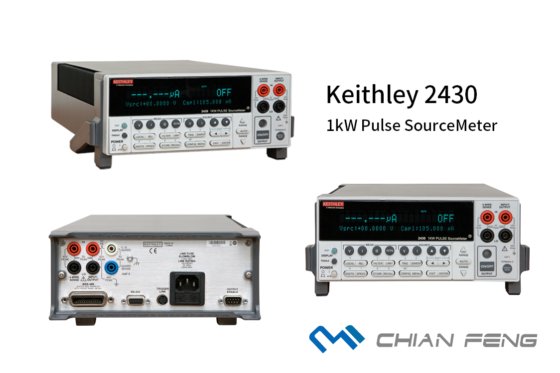

Keithley 2430 1kW Pulse SoureMeter 電流電表
Five instruments in one (IV Source, IVR Measure)
Seven models: 20 - 100W DC, 1000W pulsed, 1100V to 1 V, 10A to 10pA
Source and sink (4-quadrant) operation
0.012% basic measure accuracy with 5-1/2 digit resolution
2-, 4-, and 6-wire remote V-source and measure sensing
1700 readings/second at 4 digits via GPIB
Pass/Fail comparator for fast sorting/binning
Available high speed sense lead contact check function
Programmable DIO port for automation/handler/prober control (except Model 2401)
Standard SCPI GPIB, RS-232, and Keithley Trigger Link interfaces
Keithley LabTracer 2.0 I-V curve tracing application software (download)
The Keithley 2430 1kW Pulse SourceMeter offers the same DC source and measurement ranges as the Keithley 2425 100W SourceMeter, plus a unique 1kW pulse mode that extends the upper current limit to 10A.
