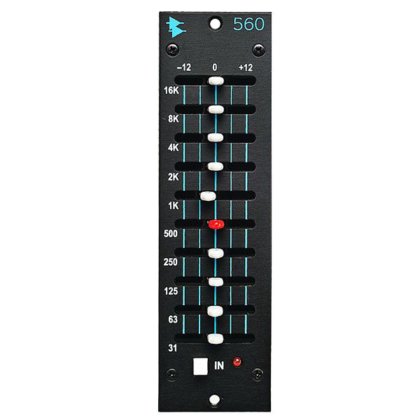

API 560 EQ en Londres, Inglaterra, Reino Unido
Nuevo
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- nuevo
- Número de stock
- API-560
- Number of bands
- 10
- Filter type
- Proportional Q, Octave entered, Continuously Adjustable Level
- Filter frequency centers
- 31, 63, 125, 250, 500, 1kHz, 2kHz, 4kHz, 8kHz, 16kHz
- Filter boost/cut
- +/- 12 dB
- Filter slope
- 12 dB per Octave at full boost or cut
- Input impedance
- 20k Resistive, Balanced
- Output impedance
- Less than 85 Ohms
- Nominal levels
- -15 to +15 dBu
- Clipping level
- Better than +28 dBu
- Frequency response
- +0, -.25, 30 Hz to 20kHz
- Noise
- -95 dBu EQ Out, -90 dBu EQ In, Unweighted 20 to 20kHz
- Distortion
- .05% max, @ +20 dBu Output
- Connectors
- 15 position .156 sp edge connector
- Power requirements
- ± 12/18 Volts/DC @ 60 ma.
- Rack frame and power supply options
- Fits 500V (10 slot rack, requires API 200PS Power Supply, 500H (2 slot rack, internal power supply), 500b "lunchbox®" (4 slot portable rack with internal power supply), API Legacy Consoles and vintage API Classic Consoles.
- Size
- 1.5" X 5.25" X 6.75" Deep
- Size (boxed for shipping)
- 4.5" X 6.5" X 10.25"
- Actual weight
- 1.61 lbs.
- Shipping weight
- 2.03 lbs.
- Categoría
- Audiovisual/Broadcast en Reino Unido
- Subcategoría
- Eq
- Subcategoría 2
- Audio
- Subcategoría 3
- Recording
- Subcategoría 4
- Studio outboard
- ID de Anuncio
- 66613122
Descripción
500 Series Discrete 10 Band Graphic EQ
Originally conceived for use in API consoles of the '60s and '70s, the 560 is a unique device designed to accomplish tasks that no other EQ can. Extremely fast to set and reset using accurate zero detents, the curve shaping potential of the 560 remains unmatched. With a wide range of 500 mounting options, from racks to consoles, the 560 proves an invaluable asset to all critical performance applications. Based on API's original 560 EQ, the current production 560 has improved resolution in the ±4 dB area and possesses our exclusive circuitry and proprietary components, including the API 2520 Op Amp.
The extraordinary headroom made possible with the 2520 offers consistent analog performance even when using radical EQ curves. Of course, the 2520's ability to drive low impedance loads is key when it is paired with API's custom output transformers.
$1,118 USD
