Matrox Monarch HD en Londres, Inglaterra, Reino Unido
Nuevo
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- nuevo
- Número de stock
- MX-MHD/I
- Interlaced
- 1920x1080i 29.97/25 frames per second
- Hdmi video output
- Preview output of video input signal. 2 Frame delay from input to output.
- Resolutions
- Selectable encoding resolutions ranging from 128x128 to 1920x1080
- Record only mode
- 100 kbps to 30 Mbps
- Stream only mode
- 100 kbps to 20 Mbps
- Recording
- 100 kbps - 30 Mbps
- Streaming
- 100 kbps - 10 Mbps
- Encode frame rates
- Encode frame rates representing 1:1, ½ and ¼of the input frames rates are supported - Note that the maximum encode frame rate is 30 fps when encode resolution is 1920 x 1080
- Encoding profiles
- Baseline, Main and High
- Standard
- AAC-LC
- Sample frequency
- 32, 44.1 and 48 kHz when digitized from analog source
- Channels
- 2 channels Stereo (L/R)
- Bit rates
- Range from 32 kbps to 256 kbps
- File type
- Industry Standard MP4 and MOV files with two channels of embedded AAC audio.
- Recording lengths
- Maximum file length of 300 minutes - irrespective of storage type used. File splitting feature allows a user to record continuously for long periods by defining file segment sizes. The Monarch HD will create these sequential file segments over the course of the recording operation without losing a single frame of video. File segment can have a length of 1 to 300 minutes.
- Connector
- RJ45 providing 10/100/1000 Base-T Ethernet with Static or DHCP addressing
- Computer based control
- HTTP via standard PC or Mac web browser using Matrox Command Center. The simple Monarch HD Control API is also available to programmers to create their own application to start and stop the Monarch HD.
- Physical interface
- On Device push buttons for independent streaming and recording Start/Stop control
- 1 x sd card slot
- Supports SD and SDHC cards. Only NTFS formatted SDXC cards are supported. (Class 10 highly recommended).
- Network mapped drive
- Support for writing to shared folders in computers found on a network using Windows Share protocols (suitable for windows system) as well as NFS protocols (suitable for Mac and Linux systems).
- Status page
- Provides relevant operational information concerning Status of MonarchHD unit at that time including; Input video detection and resolution, State and configuration of Streaming operation, State and configuration of Recording operation, Error conditions, etc.
- Control page
- Recording and Streaming operations initiated here including Synchronized start/stop operations. Multiple Monarch devices can be synchronized in a Master/Slave topology to allow for synchronized record and streaming operations across multiple units via a single interface.
- Record settings
- Configuration of recording parameters set within this page. A number of presets are included which are selected based on post event use of the recorded asset. If file is to be uploaded for VOD purposes, a YouTube preset may be selected. If content is to be edited for high quality production, a higher bitrate preset may be preferable.
- Streaming settings
- Configuration of Streaming parameters performed on this page. The RTMP or RTSP credentials as well as encoding parameters are entered. Encoder presets have been included to quickly select an ideal encoder settings based on desired delivery resolution or bitrate. The loading of Flash Media Server XML configuration files is supported.
- Administrative tools
- Device Naming, IP configuration, Date/Time settings and a variety of other tasks performed via this page.
- Additional tools
- Matrox provide PC or Mac based utilities to help detect Monarch HD Device on a particular Network (DHCP server required).
- Weight
- 0.66 lbs (300 grams) excluding power supply
- Operating conditions
- 32 to 104 deg. F (0 to 40 deg. C), 20 to 80% relative humidity (non-condensing)
- Line voltage
- 100-240V AC, 0.5A
- Frequency
- 50-60 Hz
- Input
- External AC/DC adapter - IEC320-C8
- Output
- +5VDC, 3A max
- Total power consumption
- 15 Watts
- Max operating altitude
- 3000 meters
- Max transport altitude
- 12,000 meters
- Categoría
- Audiovisual/Broadcast en Reino Unido
- Subcategoría
- Video
- Subcategoría 2
- Monitor
- Subcategoría 3
- Encoders & decoders
- Subcategoría 4
- Wireless transmission
- ID de Anuncio
- 66614096
Descripción

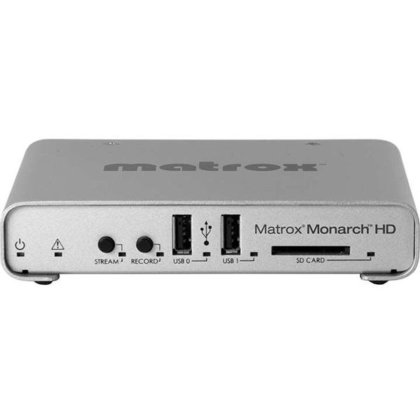

Professional Video Streaming and Recording Appliance
Matrox Monarch HD is a small, easy-to-use video streaming and recording appliance designed for professional video producers who need to simultaneously stream a live event and record a master quality version for post-event editing.
Matrox Monarch HD is a small, easy-to-use video streaming and recording appliance designed for professional video producers who need to simultaneously stream a live event and record the master quality version for post-event editing. By separating the task of recording from streaming in a single integrated unit, Matrox Monarch HD ensures that the Content Delivery Networks (CDNs) are focused on delivering quality video to your audience while you control the quality of the archive.
From any HDMI input source such as a camera or switcher, Matrox Monarch HD generates an H.264-encoded stream compliant with RTSP or RTMP protocols.
$932 USD
