SMD 3 P - EDITION en Bad Wurzach, Baden-Wurtemberg, Alemania
Nuevo
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- nuevo
- Passage width
- 1350 mm
- Workable material thickness
- 1.0 - 120 mm
- Load
- 500 kg/lfm
- Voltage
- 400 V / 50 Hz
- Network structure
- 3 + PE / 3 + PEN
- Total current consumption
- 68.1 A
- Total power
- 30.0 kW
- Insulation class
- IP 42
- Infinitely variable feed speed
- 0.3 - 8.0 m/min
- Weight approx.
- 6000 kg
- Dimensions (w/d/h) approx.
- 2170/3800/2260 mm
- Categoría
- Implementaciones
- ID de Anuncio
- 77556089
Descripción
Select your country below so we can show you the correct information for your location.
Suitable for processing various materials including steel, stainless steel and aluminium
Simultaneous processing of different material thicknesses is possible (E-units)
Individually adjustable processing parameters for optimum results

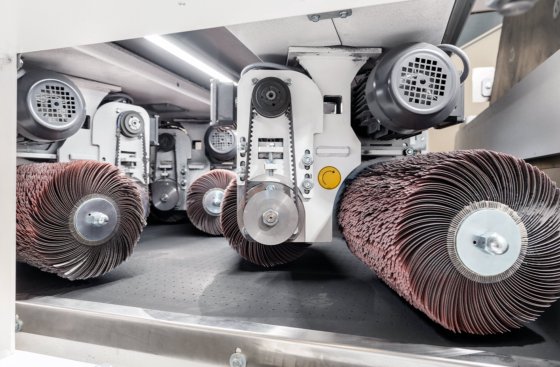

The thought-out design of the rotary heads ensure an even processing result over the whole working width.
Maximum tool contact with the workpieces for perfect edge rounding up to 2 mm radius
Efficient processing of small parts (down to 50x50 mm), whatever the geometry of the pieces
Stationary machine table - Constant table height for ergonomic work

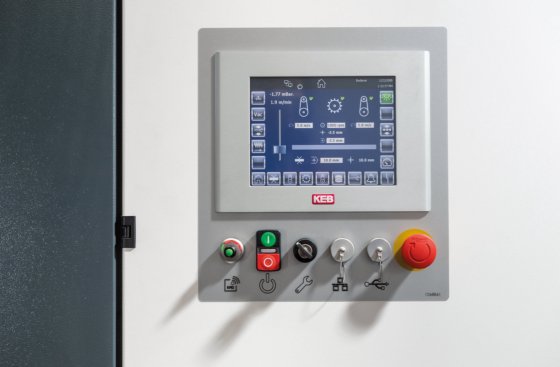

Intuitive operation thanks to clear touch panel
Flexibility and energy-efficient work because the processing units can be switched on and off separately
Fast machine setting by automatic positioning of the tool axes
Program memory takes care of automatic machine settings and reproducible processing results
