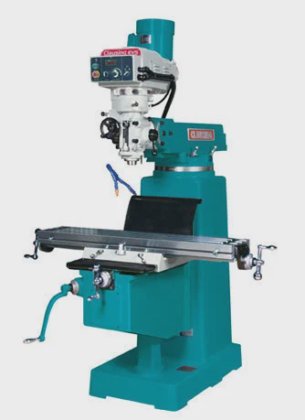

CLAUSING 3VS en Cuddy, Pensilvania, USA
Nuevo
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- nuevo
- Número de stock
- 2762
- Peso
- 2866 (LBS)
- Tabla-w
- 10.0 in
- Tabla-l
- 54.0 in
- Viaje-largo
- 36.0 in
- Travel-cross
- 15.74 in
- Potencia
- 3.0 hp
- Rpm
- 4300.0 rpm
- Cónico
- R-8
- Categoría
- Fresadoras en USA
- Subcategoría
- Molinos verticales
- ID de Anuncio
- 78473586
Descripción
Si está buscando una Softrh? Wait careful: translate content. The instruction to translate only string values. The keys 1,2,3 correspond to strings. For 2, long paragraph must be translated to Spanish Castilla. Do not translate numbers or units? Translate strings. Keep punctuation. Let's translate meticulously.
If you’re looking for a Heavy-duty Standard Vertical Milling Machine, at an affordable price, the Clausing knee mills are what you’re looking for.
Designed for precision, the Clausing Mills deliver all the power, precision and versatility you need to handle most milling jobs in your toolroom.
The Clausing Knee Mills are one of the heaviest in it’s class and is equipped with a powerful spindle drive motor and an infinitely variable speed drive offering a speed range of 75 to 4350 rpm.
These Mills offer features often found only on higher priced milling machines..
Table & Ways
Table Size 10" x 54" (254x11370mm)
No. of T-Slots 3
T-Slot Width .638" (16mm)
T-Slot Center Distance 2.48" (63mm)
Table Ways Dovetail
Knee Ways Square
Column Ways Dovetail
Travels
X Longitudinal 39.5" (1003mm)
Y Cross 15.75" (400mm)
Knee 15.55" (395mm)
Ram 22.04" (560mm)
Motors & Spindle
Spindle Motor 3 hp
Amp. Draw 208v. 7
Amp. Draw 230v. 7
Amp. Draw 460v. 5
Variable Spindle Speed rpm 85-4350
