Screw Conveying System for Central Conveying System Central Feeding System en Jiangsu, China
Nuevo
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- nuevo
- Ámbito de producción
- Línea de productos
- Automatización
- Automatización
- Capacidad de transporte
- 200-2000kg/H
- Material de la tubería
- PVC y acero inoxidable 304, 201
- Material absorbido
- Gluones plásticos, polvo plástico
- Aplicación
- Carga de material plástico
- Tensión
- 380V, 50Hz, 3 fases (puede personalizarse)
- Tipo de transmisión
- Flexible
- Línea de producción automática
- Completo
- Producción flexible
- Fabricación inteligente
- Ritmo
- Línea de producción Flow
- Especificación
- acero inoxidable 304#
- Código de la hs
- 8428399000
- Categoría
- Construcción de precisión en China
- Subcategoría
- Metal production line
- Subcategoría 2
- Assembly line & production line
- Subcategoría 3
- Manufacturing & processing machinery
- ID de Anuncio
- 81352967
Descripción
Product Description

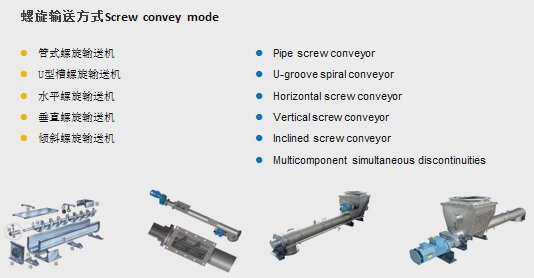

Screw convey mode
Pipe screw conveyor
U-groove screw conveyor
Horizontal screw conveyor
Vertical screw conveyor
Inclined screw conveyor
1. Screw conveyor characteristics
KLX series screw conveyor is a kind of mechanical conveying equipment widely used in plastics, metallurgy, electric power, chemical industry, building materials, food and other industries. It is mainly used to convey powdery, small particles and small block materials, which can be horizontal and inclined. Its simple structure, small cross-sectional area, low cost, convenient operation, flexible layout of the inlet and outlet openings can meet the process requirements of multi-point feeding and multi-point discharging.
2.Structural characteristics and working principle
The environment of the screw conveyor is -20 ºC ~ 50 ºC, the material temperature is ≤500 ºC, the conveying inclination angle is ≤45 ºC, and the conveying length is ≤40m.
$300,000 USD
