ASTM D2041 Asphalt Mixture Theoretical Maximum Specific Gravity and Relative Density Tester en Chongqing, China
Nuevo
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- nuevo
- After-sales service
- Lifetime Technical Support
- Fuente de alimentación
- 220V/ 50Hz
- Volumen del vaso
- 4000ml×2
- Peso neto
- 36kg
- Tipo
- tipo de medición
- Consumo total de energía
- 200w
- Presión negativa
- 3.7 Kpa+-0.3 Kpa
- Oem
- sí
- Pantalla
- pantalla digital
- Material
- aluminio
- Estándar
- ASTM D2041
- Paquete de transporte
- Packed in Veneer Case
- Especificación
- Refer to detailed description
- Origen
- Chongqing, China
- Código del hs
- 9031809090
- Capacidad de producción
- 100 Sets/ Month
- Subcategoría
- Instrumento de análisis
- Subcategoría 2
- Instrumentos y medidores
- ID de Anuncio
- 81579889
Descripción

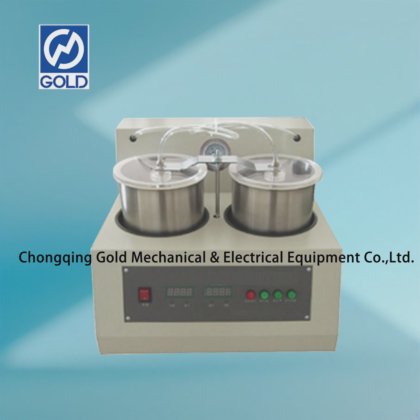

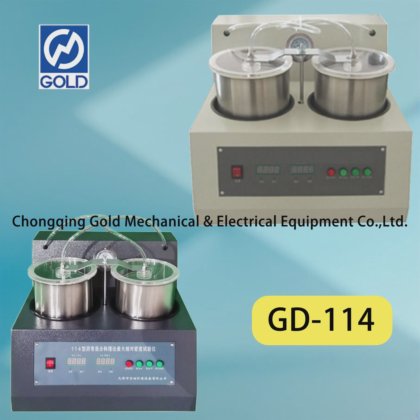

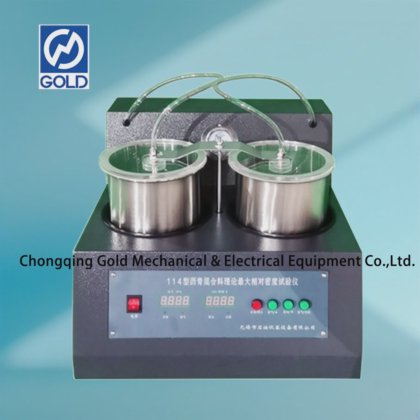

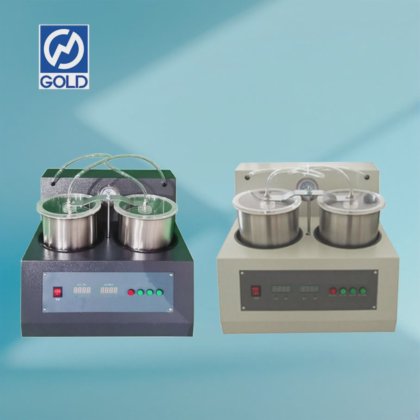

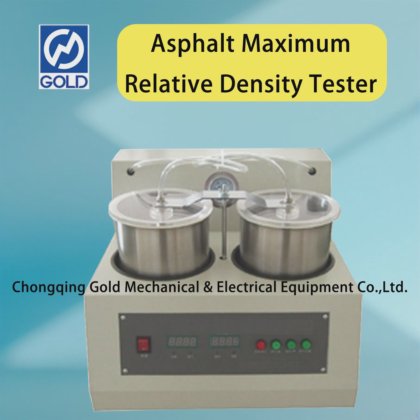

ASTM D2041 Asphalt Mixture Theoretical Maximum Specific Gravity and Relative Density Tester
Product Description
Brief introduction:
Theoretical Maximum Specific Gravity Tester is suitable to determine the theoretical maximum specific gravity of bituminous mixtures by vacuum process. It is used to design the ratio of bituminous mixtures, survey the road condition or calculate the void ratio and compactness of road is not available to determine the lacunose bituminous mixtures which water absorption overs 3%.
Basic structure:
The
theoretical maximum specific gravity tester
has continuous and indirect vibration functions, and the vibration size is adjustable. The vacuum degree is adjusted by the vacuum regulating valve and controlled automatically.
Product Parameters
Vacuum degree: 97.3kPa
Container volume: 2~4000ml
Ambient temperature: 5~35ºC
Power supply: AC220V±22v 50HZ
After Sales Service
Pre-sale Service
1.
$1,200 USD
