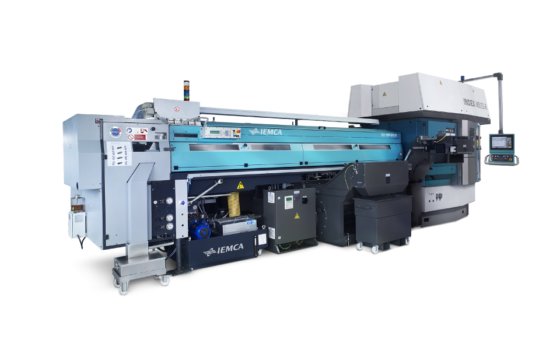

Sir Heavy Duty For Index MS Turning Machines en Faenza, Emilia-Romaña, Italia
Nuevo
Doubleclick to zoom in
Contacte al vendedor
para más fotos y información.
Especificaciones
- Condición
- nuevo
- Round bars
- 4 - 52 mm
- Bar length
- 1,500 - 4,300 mm
- Mp magazine available
- No
- F magazine available
- Yes, 2 tons
- Hexagonal bars
- 4 - 45 mm
- Fixed headstock
- Yes
- Up magazine available
- No
- Remnant length
- Min: 80 mm; Max:200 mm
- Square bars
- No
- Mobile headstock
- No
- P magazine available
- Yes, up to 62 bars
- Bar changeover time
- 36 sec. (for bar length of 3300 mm)(mod.33/N for MS22-8)
- Bar weight
- Max 78 kg
- Reversible magazines
- No
- Compressed air
- 6-10 bar
- Bar feeder weight
- SIR 25-32 33-Mutli Rack 1900 kg SIR 25-32 33-Bundle 2000 kg SIR 25-32 38-Multi Rack 2100 kg SIR 25-32 38-Bundle 2200 kg SIR 25-32 43-Multi Rack 2200 kg SIR 25-32 43-Bundle 2300 kg
- Feed rate
- 0.8 m/sec. MS52; 1.2 m/sec. MS22-8, MS40, MS40-8; 1.5 m/sec. MS16 Plus, MS22, MS32
- Installed power
- 4,5 kW MS16 Plus, MS22, MS22-8, MS32; 6 kW MS40, MS40-8, MS52
- Number of spindles
- 6 - 8
- Return speed
- 0.8 m/sec. MS52; 1.2 m/sec. MS22-8, MS40, MS40-8; 1.5 m/sec. MS16 Plus, MS22, MS32
- Operating voltage
- 230/400 V
- Categoría
- Alimentadores de barras en Italia
- Subcategoría
- Bar feeders
- ID de Anuncio
- 93332514
Descripción
SIR HEAVY DUTY is a model range of automatic bar feeders for Index multi-spindle lathes equipped of 6 and 8 spindles. This range has been developed using the platform of the automatic bar feeder Sir Heavy Duty, which is perfect to load bars with diameters between 4 and 52 mm and a length between 2,500 mm and 4,300 mm. The Sir Heavy Duty allows to load bars easily and the recovery of the remnant, without using the stock reel, and thus saving a lot of space on the ground. The Sir Heavy Duty is a bar feeder simple to use, which provides the maximum flexibility available on the market for the changeover of bar diameter (thanks to IEMCA's patent of adjustable bobbins) and it guarantees to reach the highest rotation speed. It is available with a multi rack and a bundle magazine (2 tons). It is equipped with a bar end drilling unit. The Sir Heavy Duty is available for the following models of lathes Index:
